This is the ‘SENTRIBOX range’ from Storage Design Limited

The Sentri range of Black Site and Vehicle boxes has built up a considerable reputation over the last 13 years from a standing start to being a leading, respected,trusted  and recognised brand  throughout the industry at home and around the world. As leading designers of metal storage systems we have now  taken box engineering to new levels and the locking system is  now so far advanced  for site and vanboxes that we have patents and design copyrights pending  worldwide. The Xlock™ system of two 8mm thick deadlocks working in the horizontal plane and two 8mm thick hooklocks  working in opposing directions in the vertical plane mean you have a 4 point locking system on every Sentri XLOCK™ box  that is not equalled on any sitebox available in the world today.

SENTRI XLOCK TM VB

(964mmL*450mmH*492mmW overall size)

(917mmL*446mmH*450mmW internal size)

 Substantial construction from 1.6mm and 2mm steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Twin hydraulic arms

 Drop down recessed handles

 Black powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 36 kg

Sentri XLOCK TM 515

(1310mmL*450mmH*492mmW overall size)

(1258mmL*446mmH*450mmW internal size)

 Substantial construction from 1.6mm and 2mm steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Twin hydraulic arms

 Drop down recessed handles

 Black powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 49 kg

Sentri XLOCK TM 422

(1196mmL*625mmH*643mmW overall size)

(1132mmL*550mmH*600mmW internal size)

 Substantial construction from 2 mm and 2.5 mm sheet steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Forklift/pallet truck skids with facility for bolting wheels

 Twin hydraulic arms

 Drop down recessed handles

 Black powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 74kg

Sentri XLOCK TM 432

(1196mmL*925mmH*643mmW overall size)

(1132mmL*850mmH*600mmW internal size)

 Substantial construction from 2 mm and 2.5 mm sheet steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Forklift/pallet truck skids with facility for bolting wheels

 Twin hydraulic arms

 Drop down recessed handles

 Black powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 87kg

Sentri XLOCK TM 622

(1860mmL*625mmH*643mmW overall size)

(1812mmL*550mmH*600mmW internal size)

 Substantial construction from 2 mm and 2.5 mm sheet steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Forklift/pallet truck skids with facility for bolting wheels

 Twin hydraulic arms

 Drop down recessed handles

 Black powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 116kg

Sentri XLOCK TM 442

(1196mmL*1275mmH*643mmW overall size)

(1132mmL*1200mmH*600mmW internal size)

 Substantial construction from 2 mm and 3 mm sheet steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Forklift/pallet truck skids with facility for bolting wheels

 Twin hydraulic arms

 Drop down recessed handles

 Black powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 162kg

Sentri XLOCK TM 542

(1482mmL*1275mmH*643mmW overall size)

(1428mmL*1200mmH*600mmW internal size)

 Substantial construction from 2 mm and 3 mm sheet steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Forklift/pallet truck skids with facility for bolting wheels

 Twin hydraulic arms

 Drop down recessed handles

 Black powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 191kg

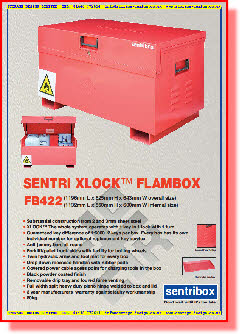

Sentri XLOCK TM FB422

(1196mmL*625mmH*643mmW overall size)

(1132mmL*550mmH*600mmW internal size)

 Removable drip tray to contain spillage

 Louvred venting with internal mesh to allow fumes to escape

 Warning label

 Substantial construction from 2mm and 3mm sheet steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Forklift/pallet truck skids with facility for bolting wheels

 Twin hydraulic arms

 Drop down recessed handles

 Red powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 89kg

Sentri XLOCK TM FV442

(1196mmL*1275mmH*643mmW overall size)

(1132mmL*1200mmH*600mmW internal size)

 Removable drip tray to contain spillage

 High and low level louvred venting with internal mesh to allow fumes to escape

 Warning label

 Substantial construction from 2 mm and 3 mm sheet steel

 Patented Sentri XLOCK™ 4 point locking system operated by one lock

 Boxes numbered for optional replacement key service

 Anti-jemmy bars all round

 Forklift/pallet truck skids with facility for bolting wheels

 Twin hydraulic arms

 Drop down recessed handles

 Red powder coated finish

 Full width split heavy duty piano hinge welded to box and lid

 Protective tool mat

 2 keys per box

 3 year manufacturers warranty for defective parts

 179kg

WHEEL KIT (OPTIONAL)

 127mm/5” heavy duty wheels (EU Tested to 300kg/wheel)

 2 fixed 2 swivel with brakes

 Same kit for all Sentri XLOCK boxes (excl. XLOCK VB and 515)

 Quick and easily fitted to pre-drilled holes in base of pallet truck skids

 Complete with nyloc nuts and bolts.

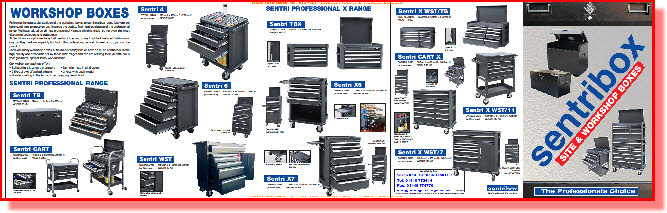

SENTRI WORKSHOP BOXES

Following the successful addition of the workshop boxes to our Sentribox range last year we have continued to move on and improve the quality, finish and packaging of the professional range. We have added an all new professional X range which is designed for even the most discerning engineers and tradesmen.All Sentri Workshop boxes have ball bearing slides and come in a black textured finish so not only do they perform superbly but look ultra professional as well. Indeed a box you can be proud of.There are many workshop boxes in the market today but we have so much confidence in the high quality and standards set by these new ranges that we are offering them all with our 3 year guarantee against faulty workmanship.

        Our mobile tool cabinets offer:

 Ball bearing slides on the drawers

 Non slip mats in all drawers

 Braked wheels

 Supplied with 2 keys

 Powder coated in the famous hard wearing Sentri black

Sentri Cart

OVERALL DIMS       762mmL*406mmD*900mmH (ex. wheels)

1 DRAWER            590mmL*273mmD*75mmH

1 DRAWER            590mmL*273mmD*101mmH

WHEELS              100mm/4” (2 Swivel 2 Fixed with brake)

N.W.:31.4KG

G.W.:37KG

        Ball bearing drawers.

 Tool mats in each drawer

 2 fixed/2 swivel wheels with brake

 Black textured finish

Sentri 4

OVERALL DIMS     688mmL*458mmD*735mmH (ex. wheels)

2 DRAWERS         589mmL*409mmD*100.5mmH

1 DRAWER          589mmL*409mmD*153mmH

CUPBOARD AREA   589mmL*450mmD*280mmH

WHEELS           125mm/5” (2 Fixed 2 Swivel with brake)

N.W.:51.0KG

G.W.:56.5KG

 Ball bearing drawers.

 Tool mats in each drawer

 2 fixed/2 swivel wheels with brake

 Black textured finish

Sentri 6

OVERALL DIMS      688mmL*458mmD*735mmH (ex. wheels)

2 DRAWERS         589mmL*409mmD*48mmH

2 DRAWERS         589mmL*409mmD*100.5mmH

2 DRAWERS         589mmL*409mmD*153mmH

WHEELS            125mm/5’’ (2 Fixed 2 Swivel with brake)

N.W.:64.5KG

G.W.:70KG

 Ball bearing drawers.

 Tool mats in each drawer

 2 fixed/2 swivel wheels with brake

 Black textured finish

Sentri WST

OVERALL DIMS 1035mmL*460mmD*900mmH (ex. wheel)

1 DRAWER     900mmL*410mmD*100mmH

1 DRAWER     570mmL*410mmD*50mmH

2 DRAWERS    570mmL*410mmD*75mmH

1 DRAWER     570mmL*410mmD*160mmH

1 DRAWER     570mmL*410mmD*250mmH

CUPBOARD    325mmL*410mmD*625mmH

WHEELS       125mm/5” (2 Fixed 2 Swivel brake)

WEIGHT       99KG

 Ball bearing drawers.

 Tool mats in each drawer

 2 fixed/2 swivel wheels with brake

 Black textured finish

Sentri TB

OVERALL DIMS   668mmL*316mmD*386mmH

TOP TRAY        666mmL*312mmD*53mmH

2 DRAWERS      125mmL*279mmD*48mmH

1 DRAWER       279.5mmL*279mmD*48mmH

2 DRAWERS      589mmL*279mmD*48mmH

1 DRAWER       589mmL*279mmD*100.5mmH

N.W.:28.0KG

G.W.:30.5KG

 Ball bearing drawers.

 Tool mats in each drawer

 Black textured finish

Sentri Cart X

OVERALL DIMS    763mmL*488mmD*885mmH (ex. wheels)

Top Tray            760mmL*485mmD*125mmH

2 Small drawer       450mmL*295mmD*61.5mmH

1 High drawer        450mmL*295mmD*127mmH

1 Drawer            625mmL*450mmD*80mmH

1 Drawer            625mmL*450mmD*127mmH

Bottom tray          760mmL*485mmD*345mmH

Wheels              125mm/5” (2 Fixed 2 Swivel with brake)

N.W.:               70.5KG

G.W.:               77.5KG

 Ball bearing drawers;

 Tool mats in each drawer;

 2 fixed/2 swivel wheel with brake

 Full width handle

 Black textured finish

Sentri TBX

OVERALL DIMS     724mmL*470mmD*426mmH

TOP TRAY           500mmL*420mmD*30mmH

3 DRAWERS         570mmL*410mmD*54mmH

1 DRAWER          570mmL*410mmD*83mmH

N.W.:38.5KG

G.W.:42KG

 Twin hydraulic arms to support lid

 Ball bearing drawers.

 Tool mats in each drawer

 Full width handles

 Black textured finish

Sentri X 5

OVERALL DIMS      724mmL*470mmD*870mmH (ex. wheels)

2 DRAWERS         570mmL*410mmD*54mm

2 DRAWERS         570mmL*410mmD*112mm

CUPBOARD AREA    595mmL*400mmD*460mm

WHEELS            125mm/5” (2 Fixed 2 Swivel brake)

N.W.:60KG

G.W.:65.5KG

 Ball bearing drawers

 Moulded plastic corner protectors

 Tool mats in each drawer

 Moulded top tool tray

 Side storage;

 2 fixed /2 swivel wheel with brake

 Full width handles

 Black textured finish

 Integral folding shelf

Sentri X 7

OVERALL DIMS     724mmL*470mmD*870mmH (ex. wheels)

2 DRAWERS        570mmL*410mmD*54mmH

4 DRAWERS        570mmL*410mmD*112mmH

1 DRAWER         570mmL*410mmD*170mmH

WHEELS           125mm/5"(2 Fixed 2 Swivel with brake)

N.W.:70.5KG

G.W.:76KG

 Ball bearing drawers.

 Moulded plastic corner protectors

 Tool mats in each drawer

 Moulded top tool tray

 Side storage;

 2 fixed /2 swivel wheel with brake

 Full width handles

 Black textured finish

 Integral folding shelf

Sentri X WST/TB

OVERALL DIMS     1091mmL*470mmD*564mmH

TOP TRAY           860mmL*425mmD*30mmH

2 DRAWERS         570mmL*410mmD*54mmH

1 DRAWER          570mmL*410mmD*112mmH

1 DRAWER          570mmL*410mmD*170mmH

2 DRAWERS         313mmL*410mmD*54mmH

1 DRAWER          313mmL*410mmD*112mmH

1 DRAWER          313mmL*410mmD*170mmH

N.W.:70KG

G.W.:83KG

 Twin hydraulic arms to support lid

 Ball bearing drawers.

 Tool mats in each drawer

 Full width handles

 Black textured finish

Sentri X WST/11

OVERALL DIMS   1091mmL*470mmD*870mmH (ex. wheels)

1 DRAWER        937mmL*410mmD*130mmH

1 DRAWER        570mmL*410mmD*54mmH

3 DRAWERS       570mmL*410mmD*112mmH

1 DRAWER        570mmL*410mmD*170mmH

1 DRAWER        313mmL*410mmD*54mmH

3 DRAWERS       313mmL*410mmD*112mmH

1 DRAWER        313mmL*410mmD*170mmH

WHEELS          125mm/5"(2 Fixed 2 Swivel with brake)

N.W.:104.5KG

G.W.:137KG

 Ball bearing drawers.

 Moulded plastic corner protectors

 Tool mats in each drawer

 Moulded top tool tray

 Side storage;

 2 fixed /2 swivel wheel with brake

 Full width handles

 Black textured finish

Sentri X WST/7

OVERALL DIMS    1091mmL*470mmD*870mmH (ex. wheels)

1 DRAWER          937mmL*410mmD*130mmH

3 DRAWERS         570mmL*410mmD*54mmH

2 DRAWERS         570mmL*410mmD*112mmH

1 DRAWER          570mmL*410mmD*170mmH

CUPBOARD AREA   330mmL*440mmD*580mmH

WHEELS 125mm/5"(2 Fixed 2 Swivel with brake)

N.W.:94.5KG

G.W.:127KG

 Ball bearing drawers.

 Moulded plastic corner protectors

 Tool mats in each drawer

 Moulded top tool tray

 Side storage;

 2 fixed /2 swivel wheel with brake

 Full width handles

 Black textured finish
